Creating and managing site maps with SEiNG

Get a visual overview of devices at your site with SEiNG’s map tool. Upload maps or floorplans and plot your cameras and their field of view, to help you identify blind spots, optimise coverage, or plan the ideal camera layout. Read our step-by-step instructions below, or visit our video tutorial.

Back

A step-by-step guide to SEiNG maps

How to access maps in SEiNG

Log into SEiNG. You’ll see your existing maps on your SEiNG dashboard. To navigate to the maps tab:
  1. Go to sites on the sidebar menu (indicated by green square on image)
  2. On the top navigation bar, click Maps (indicated by yellow square on image)
  3. You’ll now see any existing maps and be able to add new ones

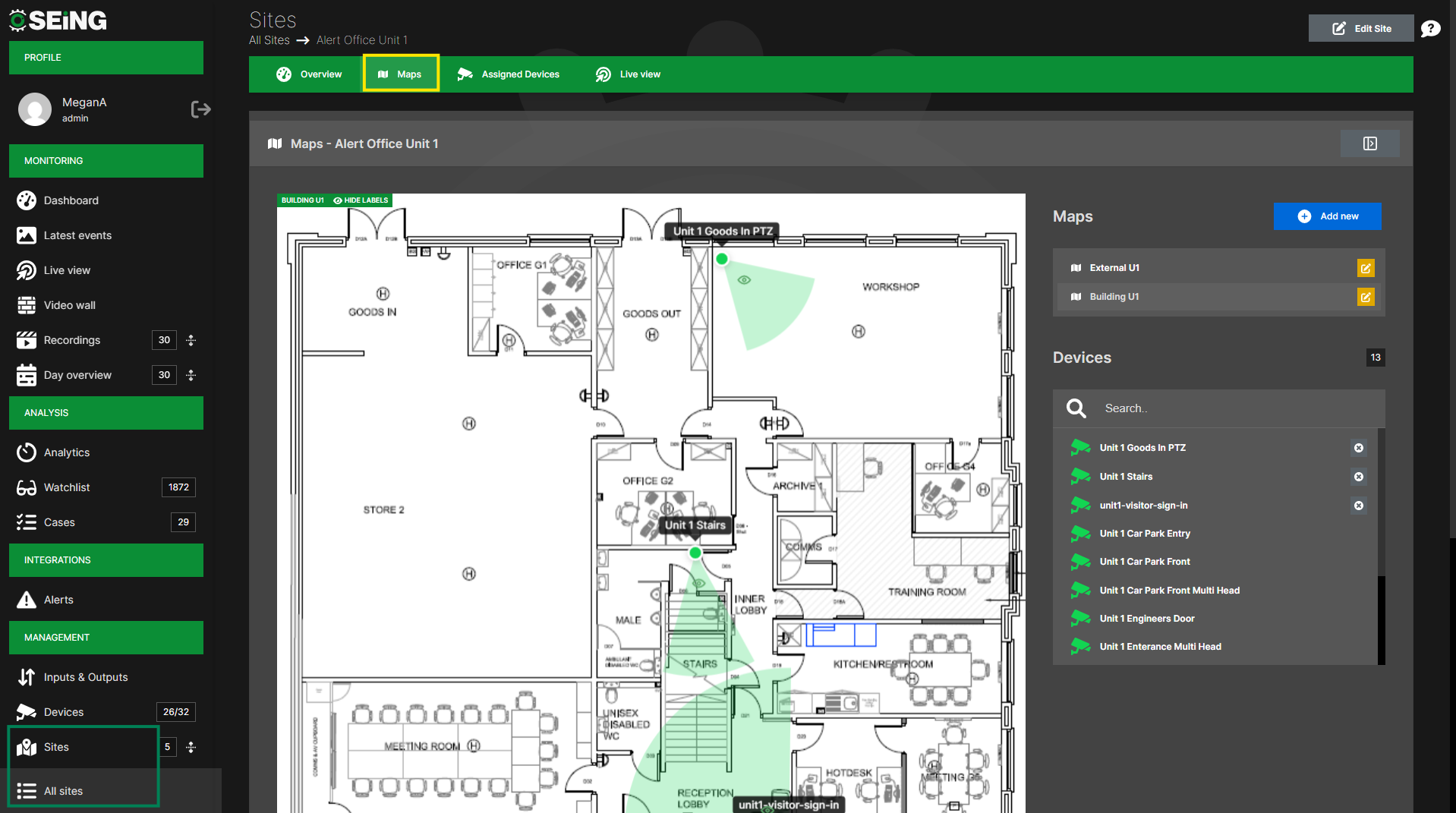

SEiNG map menu

How to add a new SEiNG map

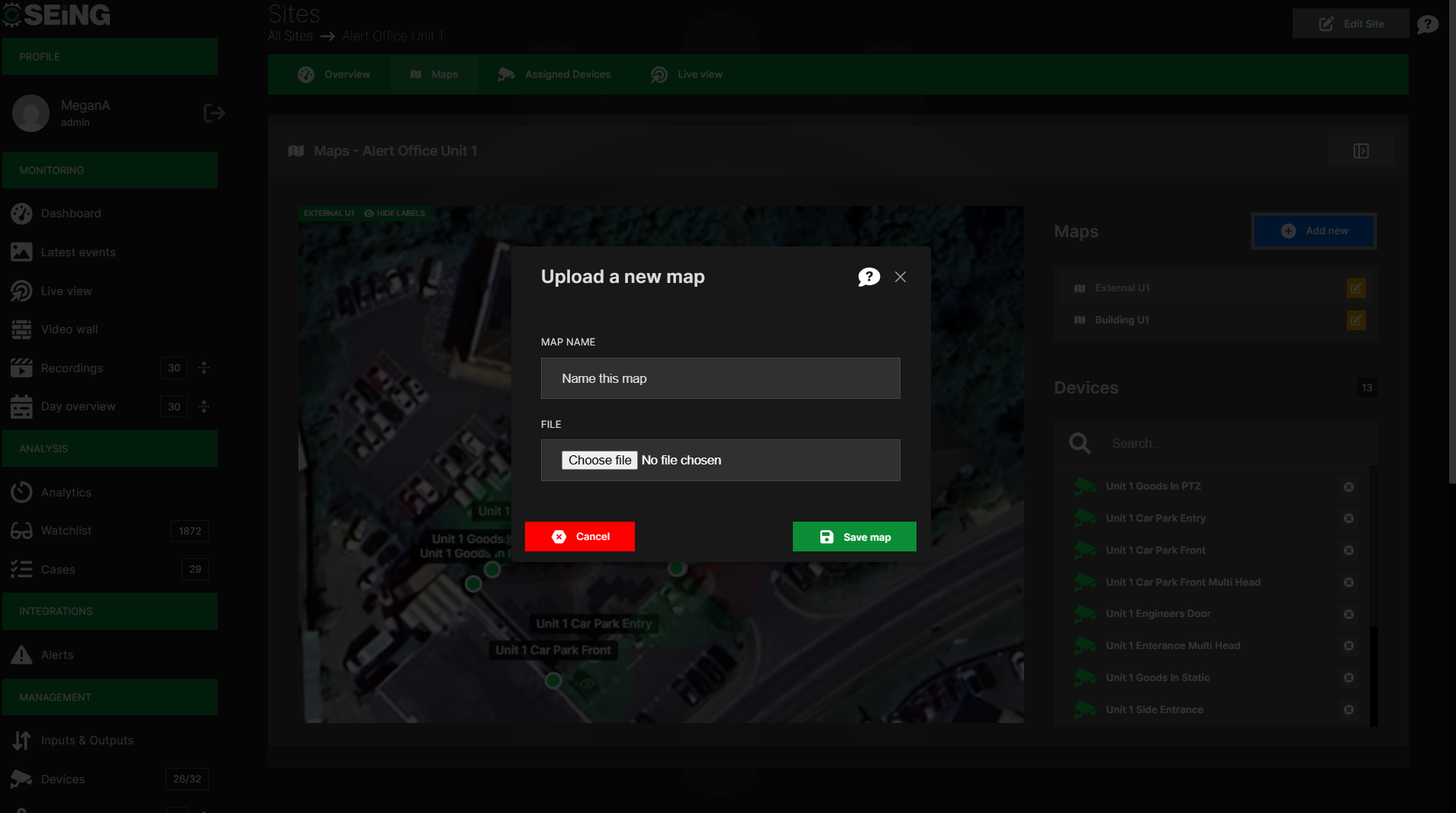

How to upload a map in SEiNG
  1. Click the blue “add new” button on the maps tab
  2. Name your map and choose the file
  3. Click save
You can edit these details at any time by clicking on the orange “Edit” icon next to your map name.

How to add devices on a SEiNG map

  1. Select the map you want to edit
  2. Select the device you’d like to plot
  3. Click on the map. Your device will now show as a dot, with a shaded area to indicate field of view
  4. To reposition the device, click and drag the dot
  5. To accurately represent your device's coverage, simply click and drag the shaded area to adjust the field of view
You'll notice that your camera icon colour changes to show activity in that area. It'll show as red if there's no activity, or green if there is.

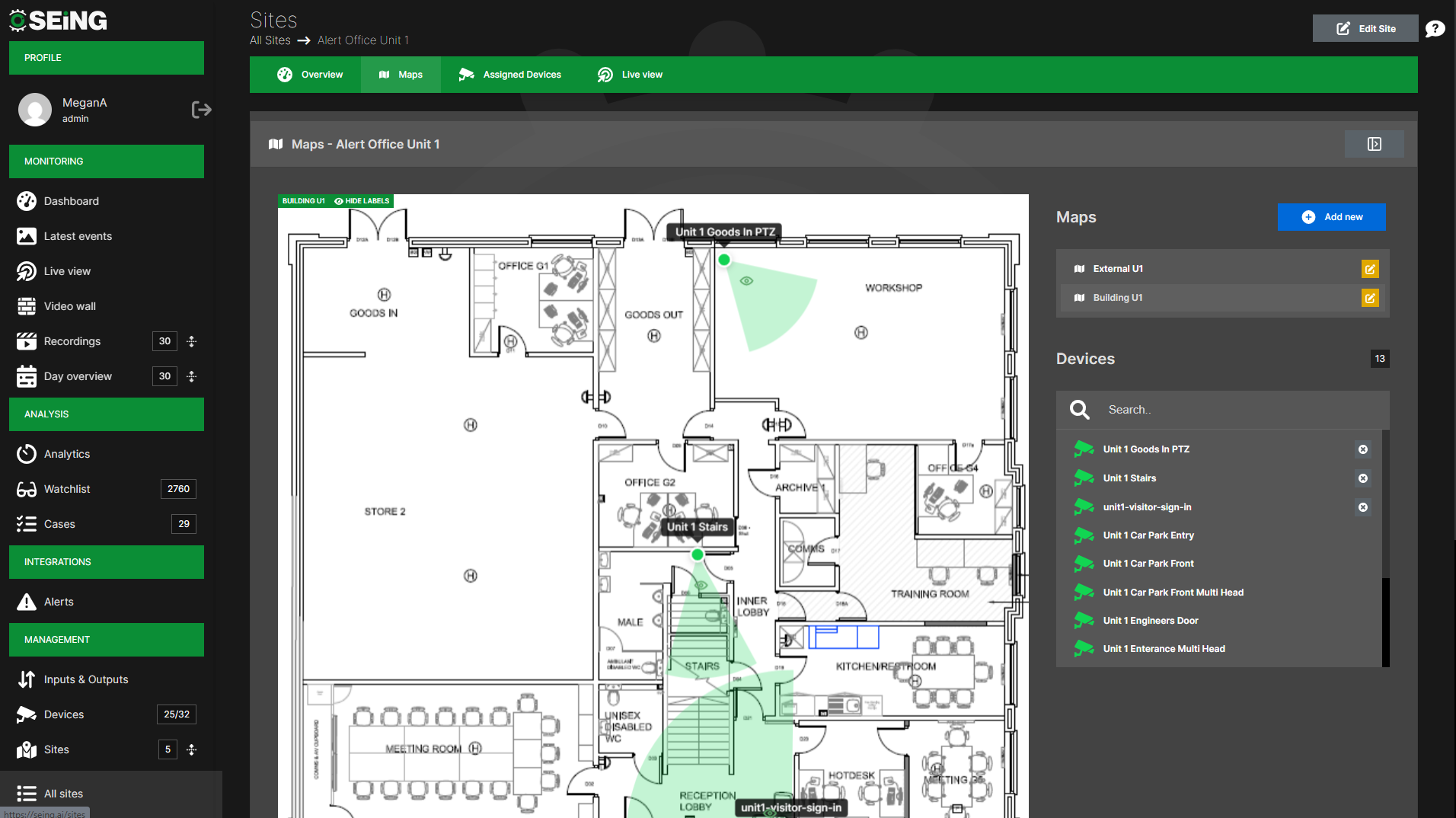

How to add cameras onto SEiNG map

How to view live footage within a SEiNG map

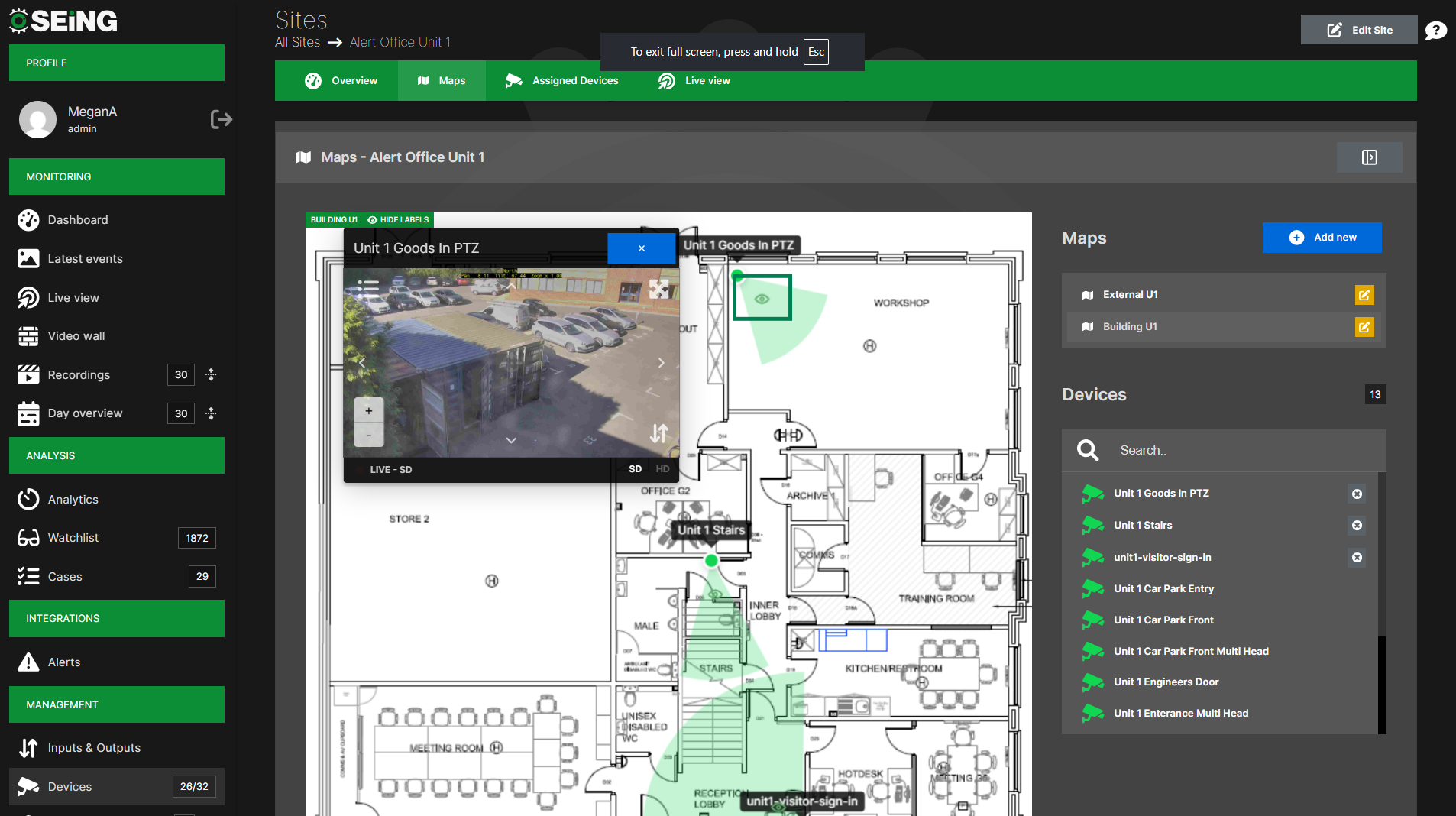

View live footage SEiNG map
  1. Click on the eye icon within the shaded field of view of your device (green square on image)
  2. A modal window will pop up showing a live stream of your footage
  3. If user permissions allow, you can use the relevant buttons within the window to switch between standard or high definition, PTZ, trigger outputs
You can open multiple cameras at once, if you want to see what’s happening across your site

How to delete a map in SEiNG

  1. Click the yellow "Edit Map" icon next to the map name
  2. The map editor will open
  3. Click the red "delete" button (highlighted by yellow box on image)
  4. Your map has now been deleted
How to delete a map on SEiNG
